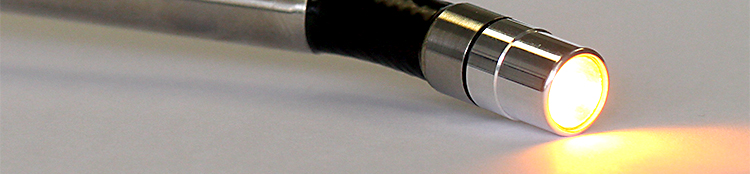

Probes for outpatient applications (LC 150 D)
The EKA probes come in various diameters and lengths. They are available in both autoclavable and non-autoclavable versions. The probes can thus be used for different applications with the same device, e.g. for proctological and gynaecological application as well as minimal-invasive use both in outpatient departments and hospitals.
Probes for LC 150 D
| LCD.520: Obliteration of haemorrhoids, autoclavable |
|---|
| Contact area: Ø 7 mm |
| Active length: 110 mm |
| Angled: 30° |
| Infrared-luminous power: approx. 40 W/cm2 |
| Sterilisation: autoclavable |
| LCD.521: Obliteration of haemorrhoids |
|---|
| Contact area: Ø 7 mm |
| Active length: 110 mm |
| Angled: 30° |
| Infrared-luminous power: approx. 40 W/cm2 |
| Sterilisation: disinfectable |
| LCD.522: General proctologic application, autoclavable |
|---|
| Contact area: Ø 7 mm |
| Active length: 220 mm |
| Angled: 20° |
| Infrared-luminous power: approx. 40 W/cm2 |
| Sterilisation: autoclavable |
| LCD.523: General proctologic application |
|---|
| Contact area: Ø 7 mm |
| Active length: 220 mm |
| Angled: 20° |
| Infrared-luminous power: approx. 40 W/cm2 |
| Sterilisation: disinfectable |
| LCD.524: Haemostasis in polypectomy, autoclavable |
|---|
| Contact area: Ø 7 mm |
| Active length: 350 mm |
| Angled: 10° |
| Infrared-luminous power: approx. 40 W/cm2 |
| Sterilisation: autoclavable |
| LCD.525: Haemostasis in polypectomy |
|---|
| Contact area: Ø 7 mm |
| Active length: 350 mm |
| Angled: 10° |
| Infrared-luminous power: approx. 40 W/cm2 |
| Sterilisation: disinfectable |
| LCD.510: Gynaecology and Paediatrics, autoclavable |
|---|
| Contact area: Ø 11 mm |
| Active length: 150 mm |
| Angled: 0° |
| Infrared-luminous power: approx. 40 W/cm2 |
| Sterilisation: autoclavable |
| LCD.511: Gynaecology and Paediatrics |
|---|
| Contact area: Ø 11 mm |
| Active length: 150 mm |
| Angled: 0° |
| Infrared-luminous power: approx. 40 W/cm2 |
| Sterilisation: disinfectable |
| LCD.512: Gynaecology and Paediatrics, autoclavable |
|---|
| Contact area: Ø 11mm |
| Active length: 150 mm |
| Angled: 20° |
| Infrared-luminous power: approx. 40 W/cm2 |
| Sterilisation: autoclavable |
| LCD.513: Gynaecology and Paediatrics |
|---|
| Contact area: Ø 11mm |
| Active length: 150 mm |
| Angled: 20° |
| Infrared-luminous power: approx. 40 W/cm2 |
| Sterilisation: disinfectable |

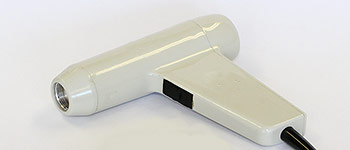

| Probe adapter LC150D.02 |
|---|
| for all minimal-invasive and ambulant probes |
| 15 Volts / 150 Watts electrical power |
| probe cable fixed to the probe adapter |
| suitable for basic unit LC150D.01 |
| not autoclavable |
| with hand switch and +/- buttons on the back for adjustment of coagulation duration |
